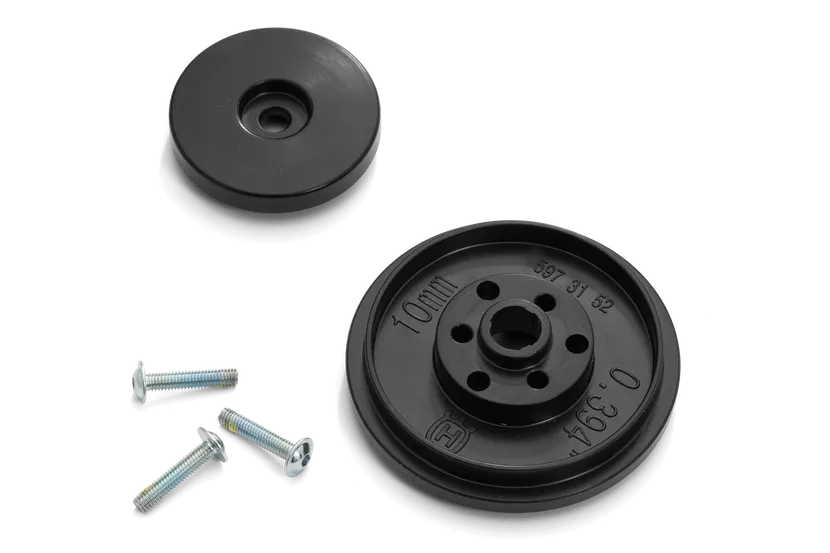

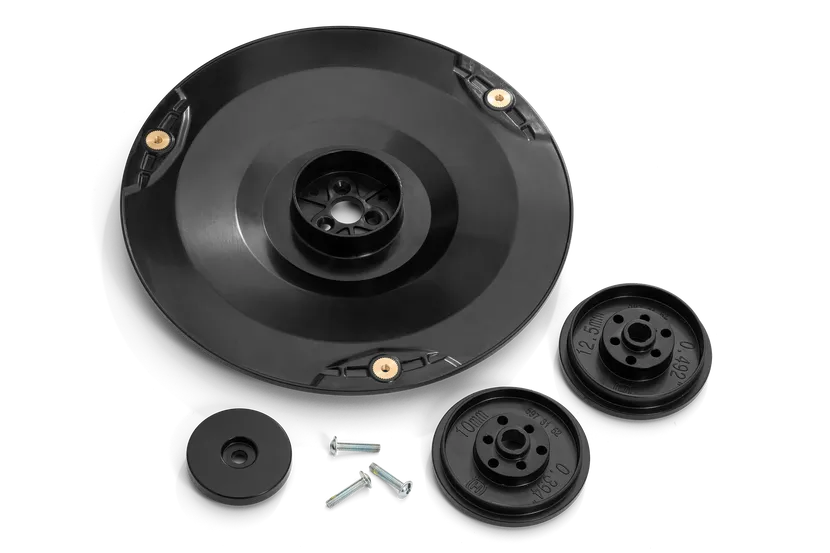

Kit to convert Automower® to a lower cutting height, perfect for golf courses and other sport applications.
Note: a low selected cutting height may cause a reduced mowing capacity. Use together with original Automower® Safety blades. Suitable for Automower® 430X/450X/550 (-m2016-2019)

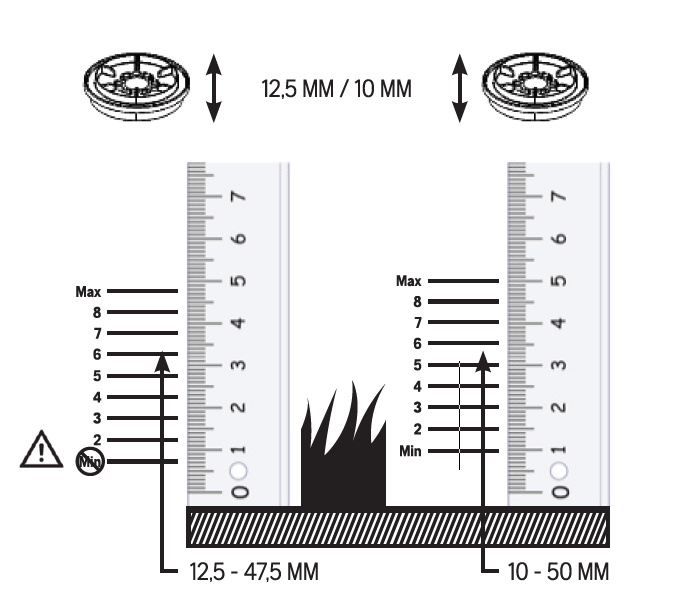

Step
Cutting height
Cutting height with 10 mm spacer
Cutting height 12,5 mm spacer
MAX
60 mm
50 mm
47,5 mm
8
55 mm
45 mm
42,5 mm
7
50 mm
40 mm
37,5 mm
6
45 mm
35 mm
32,5 mm
5
40 mm
30 mm
27,5 mm
4
35 mm
25 mm
22,5 mm
3
30 mm
20 mm
17,5 mm
2
25 mm
15 mm
12,5 mm
MIN
20 mm
10 mm
7,5 mm
*Don’t use 20mm (MIN) settings with 12,5mm spacer, the cutting disc can hit the charging station plate.
